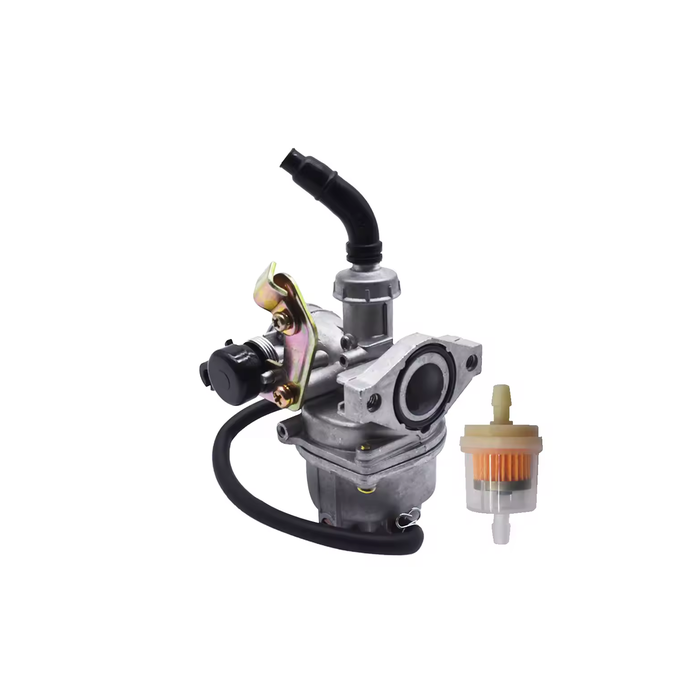

CARBURETOR ASSEMBLY 07-16 POLARIS OUTLAW PREDATOR SPORTSMAN 50 90

This carburettor is a replacement fuel-mixing assembly for selected Polaris youth ATV models. It is used in the engine carburettor system to help restore standard fuel delivery, choke operation and idle control where the original carburettor is worn, damaged or faulty.

Features

• Direct OEM-style replacement carburettor assembly
• Fits the original mounting locations
• Made to OEM specifications and designed to match the original equipment appearance
• Suitable for standard engine carburettor replacement
• Designed to support standard engine operating loads
• Check the product image and existing part before ordering to confirm suitability
• Professional installation is recommended if unsure

Included Components

• Cable choke lever
• Air mixture adjustment screw
• Idle adjustment
• Needle jet, spring and clip
• Float set and float chamber assembly
• Overflow nozzle and tubing

Specifications

• Main jet: 99101-116/70
• Pilot jet: N424-74C/35

Cross-Reference OEM Part Numbers

• 0454886
• 0454189
• 0453637

Vehicle Fitments

Polaris

• Outlaw 50 (2008-2014)
• Predator 50 (2007)
• Outlaw 90 (2007-2014, 2016)
• Sportsman 90 (2007-2014, 2016)
