BRAKE SNAKE SET/3 MOTION PRO 11-0008

Pedal anchor kit designed to limit brake pedal or gear lever over-travel and help prevent the pedal from catching on berms, branches, rocks and other obstacles. Supplied as a complete cable and fitting set for installation on suitable mounting points around the pedal area.

Features

• Helps prevent brake pedal from catching on berms, branches, rocks and similar obstacles
• Supplied as a kit with cables, crimp fittings and clear PVC tubing
• Made in the USA
• Installation procedure:
• Drill 1/16 in hole in the front, outside part of the brake pedal or shift lever
• Thread cable up through the hole in the pedal until the soldered end pulls up against the pedal
• Slide tubing over the cable
• Slide special crimp fitting onto the cable
• Find suitable location forward of the pedal on frame tube, motor mount or pipe bracket for the other end of the cable; loop cable around mount (additional 1/8 in hole may be required) and back through the crimp fitting
• Move pedal throughout complete travel making sure that...

Specifications

• Kit type: Pedal anchor kit

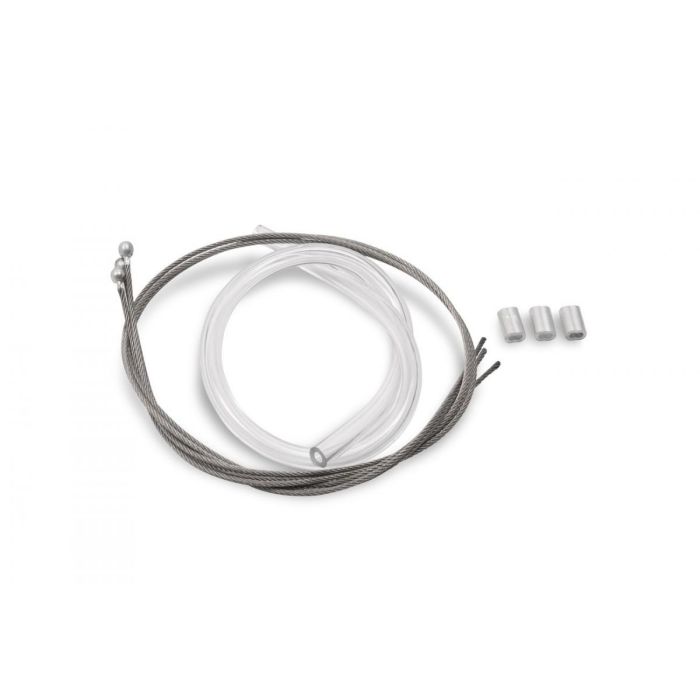

• Contents: 3 cables, 3 special crimp fittings, 12 in of 1/8 in clear PVC tubing
• Housing: Clear PVC tube for cable protection at contact areas
• Application: Brake pedal or shift lever anchoring
• Country of origin: USA

Cross-Reference OEM Part Numbers

• Motion Pro 11-0008
