BRAKE SHOES SET HONDA TRX 200 250 300 EBC H345

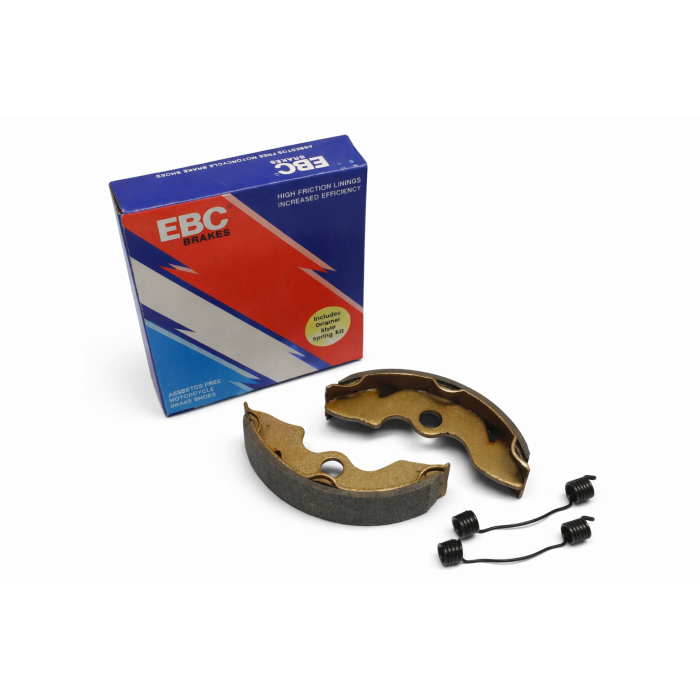

This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The Plain Motorcycle Brake Shoes design and 100% asbestos-free bonded brake lining construction balance bite, modulation and durability under heat. Supplied as a complete shoe set with OE-style brake shoe springs, it is suitable for 130 mm × 25 mm drum-brake systems in drum-brake applications and is manufactured as an OE-quality replacement where applicable.

Features

• Radius-ground linings for accurate drum contact
• Edge-trimmed linings to help reduce vibration and noise
• Lead-in and lead-out chamfers for progressive engagement
• Supplied with OE-style brake shoe springs

Specifications

• Product type: Brake shoe set
• Product range/series: Plain Motorcycle Brake Shoes
• Compound / material: 100% asbestos-free bonded brake lining
• Construction / design: Plain (ungrooved) friction lining bonded to high-pressure die-cast aluminium shoe platforms

Dimensions

• Pad/shoe dimensions (L × H × T): 130 mm × 25 mm (drum diameter × shoe width)

Cross Reference Numbers

• H345
• EBCH345
• 5050953101861
• 06450-HB3-405
• 06450-HC4-900
• 06450-HC4-901
• 06450-HC5-405
• 06450-HC5-900
• 06450-HM4-830
• 45151-HB3-003
• 45151-HB3-305
• 45151-HC4-000
• 45151-HC4-901
• 451A0-HB3-670
• 451A0-HC4-670
• 451A5-HB3-003

Vehicle Fitment

HONDA (Front Left)

• TRX 200 (1993)
• TRX 200 L|M (1990)
• TRX 200 D (1992-1994, 1996)
• TRX 250 TE2 Re Con ES (2002-2003, 2006-2007, 2014)
• TRX 250 TM2 Re Con (1997, 1999-2000, 2002, 2004, 2009-2010, 2014)
• TRX 300 Fourtrax 2WD (1988, 1990-1993, 1996-1998, 2000)
• TRX 200 SX (1986-1987)

HONDA (Front Right)

• TRX 200 (1990-1992)
• TRX 200 L|M (1991)
• TRX 200 D (1995, 1997)
• TRX 250 TE2 Re Con ES (2004-2005, 2008-2013)
• TRX 250 TM2 Re Con (1998, 2001, 2003, 2005-2008, 2011-2013)
• TRX 300 Fourtrax 2WD (1989, 1994-1995, 1999)
