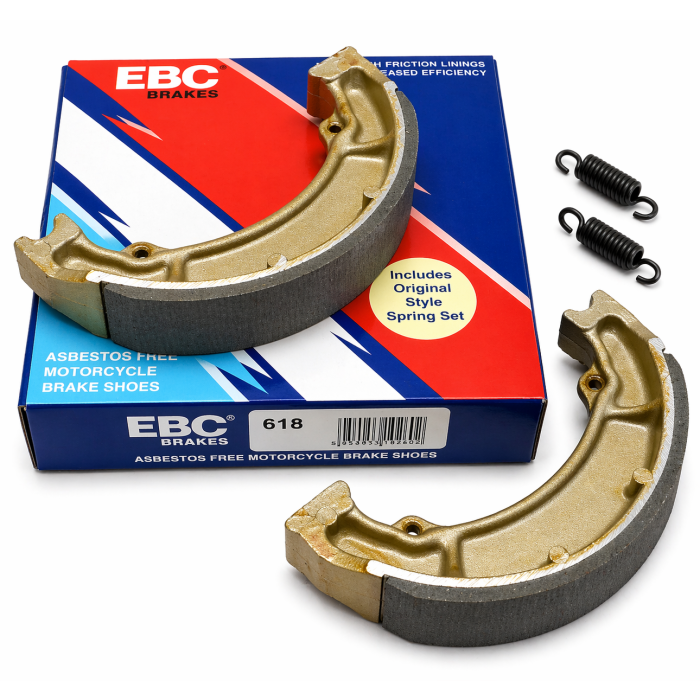

BRAKE SHOES KAWASAKI SUZUKI EBC S618

This brake shoe set from EBC Brakes provides consistent braking performance and control for off-road use. The plain motorcycle replacement design and high-pressure die-cast aluminium platform construction with 100% asbestos-free bonded brake linings balance bite, modulation and durability under heat. Supplied as a complete brake shoe set with OE-style brake shoe springs, it is suitable for drum brake systems in applications where specified.

Features

• Radius ground to match the drum for stable contact and predictable engagement
• Edge trimmed with lead-in and lead-out chamfers to promote smooth initial bite
• Supplied with OE-style brake shoe springs for correct return and fit

Specifications

• Product type: Brake shoe set
• Product range/series: Plain motorcycle replacement brake shoes
• Position: Front or rear (application dependent)
• Compound / material: 100% asbestos-free bonded brake linings
• Construction / design: High-pressure die-cast aluminium shoe platforms with bonded linings
• Direction of rotation: Not directional

Dimensions

• Pad/shoe dimensions (L × H × T): 130 mm (drum diameter) × 22 mm (shoe width)

Cross Reference Numbers

• EBC: S618

Vehicle Fitment

KAWASAKI (Rear Right)

• KFX 80 KSF (2003-2006)

SUZUKI (Front Left)

• RM 250 T (1980)
• RM 400 T (1980)

SUZUKI (Front Right)

• PE 175 Z (1982)

SUZUKI (Rear Left)

• LT 80 (1987-2006)

SUZUKI (Rear Right)

• LT-Z 90 Quadsport (2007-2023)
