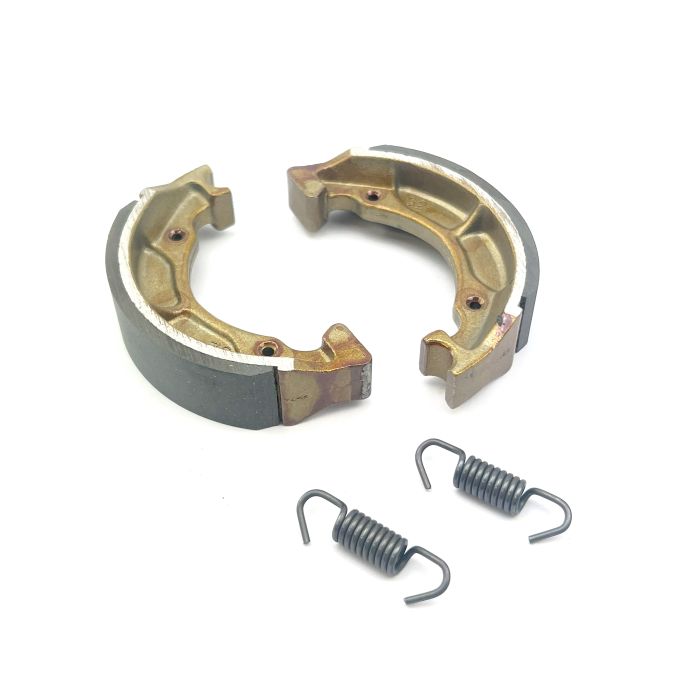

BRAKE SHOES KAWASAKI SUZUKI EBC S613

This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The plain motorcycle replacement design and high-pressure die-cast aluminium shoe platform construction with bonded brake linings balance bite, modulation and durability under heat. Supplied as a complete brake shoe set with OE-style brake shoe springs, it is suitable for motorcycle drum brake systems in applications where specified.

Features

• Radius ground to match the drum for stable contact and predictable engagement
• Edge trimmed with lead-in and lead-out chamfers to promote smooth initial bite
• Supplied with OE-style brake shoe springs for correct return and fit

Specifications

• Product type: Motorcycle brake shoe set
• Product range/series: Plain motorcycle replacement brake shoes
• Compound / material: Bonded brake linings
• Construction / design: High-pressure die-cast aluminium shoe platforms with bonded linings
• Direction of rotation: Not directional

Dimensions

• Pad/shoe dimensions (L × H × T): 90 mm (drum diameter) × 20 mm (shoe width)
• Weight: 0.15 kg

Cross Reference Numbers

• EBC: S613

Vehicle Fitment

KAWASAKI (Front Left)

• KDX 50 A1 - A3 (2005)

KAWASAKI (Rear Right)

• KDX 50 A1 - A3 (2003-2004)

SUZUKI (Front Left)

• CS 50 Z|D Roadie (1983-1984)
• JR 50 All models (1978-1979, 1981, 1984, 1988-1989, 1991, 1994, 1997-2000)

SUZUKI (Rear Left)

• CL 50 D Suzi|Love (1983)
• JR 50 All models (1980, 1982-1983, 1985-1987, 1990, 1992-1993, 2001-2007)
• LT 50 (1986-2002)
