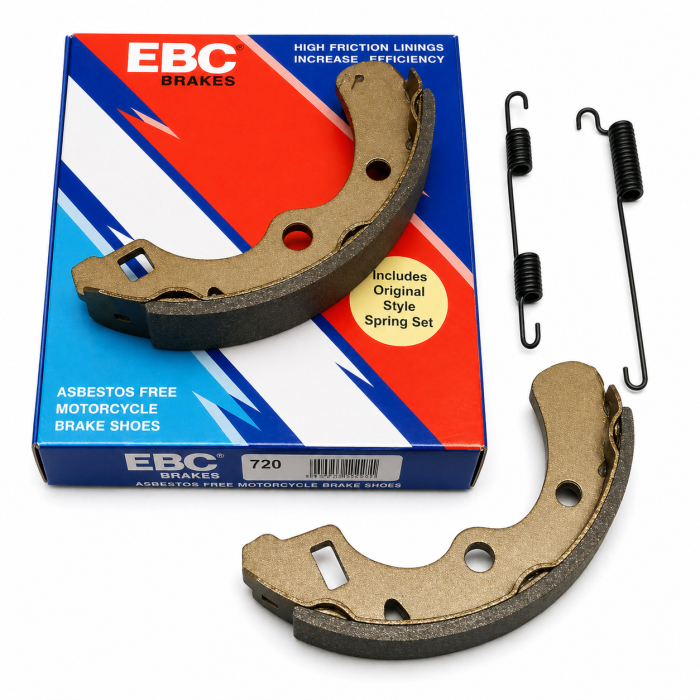

BRAKE SHOES KAWASAKI KAF 450 540 620 950 EBC K720

This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The Plain Motorcycle Replacement Brake Shoes design and bonded brake lining construction with high-pressure die-cast aluminium platforms balance bite, modulation and durability under heat. Supplied as a brake shoe set with OE-style springs, it is suitable for drum brake applications.

Features

• Radius ground and edge trimmed to match the brake drum for consistent contact
• Lead-in and lead-out lining chamfers to help smooth engagement
• Supplied with OE-style brake shoe springs
• Bonded lining design intended to promote even wear and reduce drum scoring

Specifications

• Product type: Brake shoe set
• Product range/series: Plain Motorcycle Replacement Brake Shoes
• Compound / material: Bonded brake lining
• Construction / design: High-pressure die-cast aluminium shoe platforms with bonded linings and chamfered lining ends

Cross Reference Numbers

• EBC: K720

Dimensions

• Disc/rotor diameter: 180 mm
• Weight: 0.4 kg

Vehicle Fitment

KAWASAKI (Rear Left)

• KAF 450 B1 Mule 1000 (2007)
• KAF 540 C1 Mule 2010 (2002, 2006)
• KAF 540 D1 Mule 2020 (2003, 2005-2006)
• KAF 540 E1 Mule 2030 (2003-2004, 2007)
• KAF 620 Mule 2510 (2007)
• KAF 620 Mule 2520 (2007)
• KAF 620 Mule 3010 4 x 4 (2007)
• KAF 620 Mule 3010 Trans 4 x 4 (2007)
• KAF 620 Mule 4000 (2009-2010, 2013, 2016-2017)
• KAF 620 Mule 4010 All Models (2010, 2013-2014, 2016-2017)
• KAF 950 Mule 2510 Diesel (2007)
• KAF 950 Mule 4010 Diesel 4 x 4 All (2010, 2012-2013)

KAWASAKI (Rear Right)

• KAF 540 C1 Mule 2010 (2003-2005, 2007)
• KAF 540 D1 Mule 2020 (2002, 2004, 2007)
• KAF 540 E1 Mule 2030 (2002, 2005-2006)
• KAF 620 Mule 2500 (2007)
• KAF 620 Mule 3000 (2007)
• KAF 620 Mule 3010 (2007)
• KAF 620 Mule 3010 Trans 4 x 4 (2005-2006)
• KAF 620 Mule 3020 (2007)
• KAF 620 Mule 4000 (2011-2012, 2014-2015)
• KAF 620 Mule 4010 All Models (2009, 2011-2012, 2015)
• KAF 950 Mule 3010 Diesel All (2007-2008)
• KAF 950 Mule 4010 Diesel 4 x 4 All (2009, 2011)

SUZUKI (Rear Left)

• QUV 620 FK5 Side x Side (2005)
