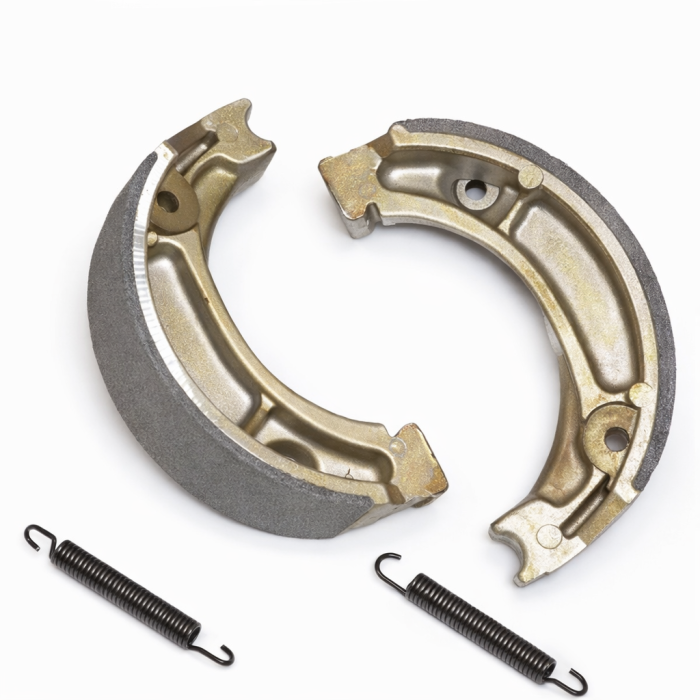

BRAKE SHOES HONDA CR80R XL80S XR80 XL100S XR100 NX125 XL125S EBC S304 H304

This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The plain motorcycle replacement design and asbestos-free bonded brake lining construction balance bite, modulation and durability under heat. Supplied as a complete shoe set with OE-style brake shoe springs, it is suitable for 110 mm drum brake systems on two-wheeled machines in drum brake applications.

Features

• Edge trimmed and radius ground to match the brake drum
• Chamfered lining ends to promote smooth, progressive engagement
• Supplied with OE-style brake shoe springs for straightforward fitting

• OE-quality replacement specification for standard road use

Specifications

• Product type: Motorcycle brake shoe set
• Product range/series: Plain motorcycle replacement brake shoes
• Compound / material: 100% asbestos-free bonded brake linings
• Construction / design: High-pressure die-cast aluminium platforms

Dimensions

• Disc/rotor diameter: 110 mm (drum diameter)

Cross Reference Numbers

• H304

Vehicle Fitment
HONDA

• CR80R (1980-1982)
• XL80S (1980-1985)
• XR80 (1979-1984)
• XL100S (1985)
• XR100 (1981-1984)
• NX125 (1988-1990)
• XL125S (1985)
