BRAKE SHOES GROOVED YAMAHA EBC G503 Y503G

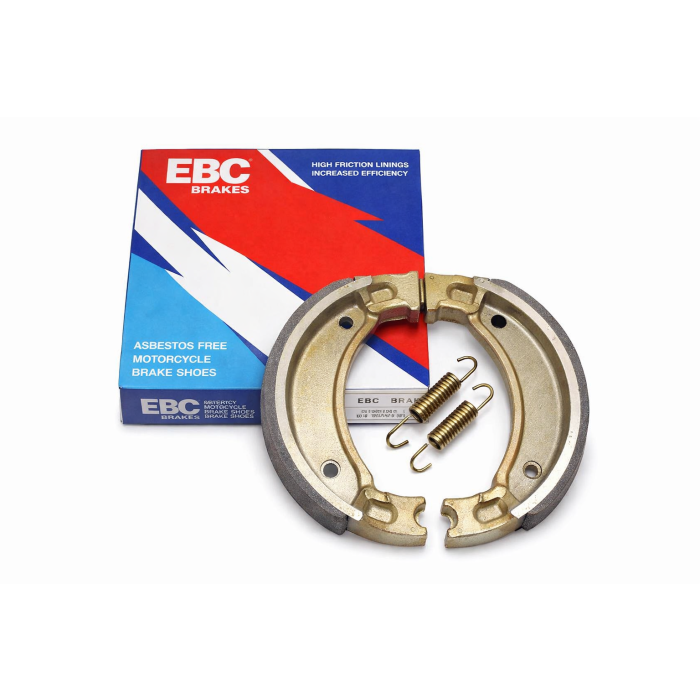

This brake shoe set from EBC Brakes provides consistent braking performance and control for off-road use. The Water Grooved Brake Shoes design and 100% asbestos-free bonded organic brake lining construction balance bite, modulation and durability under heat. Supplied as a complete shoe set with OE-style brake shoe springs, it is suitable for 110 mm × 25 mm drum-brake systems in front applications and is manufactured as an OE-quality replacement where applicable.

Features

• Angled water grooves to channel away water, dirt and dust from the braking area
• Radius-ground and edge-trimmed linings for accurate drum contact
• Lead-in and lead-out chamfers for progressive engagement
• Supplied with OE-style brake shoe springs

Specifications

• Product type: Brake shoe set
• Product range/series: Water Grooved Brake Shoes
• Position: Front
• Compound / material: 100% asbestos-free bonded organic brake lining
• Construction / design: Grooved friction linings bonded to high-pressure die-cast aluminium shoe platforms

Dimensions

• Pad/shoe dimensions (L × H × T): 110 mm × 25 mm (drum diameter × shoe width)
• Weight: 0.2 kg

Cross Reference Numbers

• Y503G
• EBCY503G
• G503
• 5050953102950

Vehicle Fitment

APACHE (Front Right)

• RLX 150 S (2004)

BAROSSA (Front Left)

• 100 Sport|Python (2003)
• 170 Cheetah (2003, 2005-2006)
• 250 Cheetah (2004-2006)

BAROSSA (Front Right)

• 100 Sport|Python (2004-2005)
• 170 Cheetah (2004)
• 250 Cheetah (2003)

CPI (Front Left)

• XT 50 Quad (2006-2009)

DERBI (Front Left)

• DXR 200 Quad (2004-2005)

POLARIS ATV (Front Left)

• Scrambler 50 (1985-1986)
• Trail Boss 250 2 x 4 (1985-1987)

POLARIS ATV (Front Right)

• Cyclone X 250 (1987)

QUADZILLA (Front Left)

• Black Max M100 SE (2006)
• R170 Ram (2003-2005)
• R170 Ram E Stinger (2003, 2005)
• R170 Stinger E (2006)
• R200 E Stinger E Stinger (2007)
• Ram R250 (2003)
• Ram R250 E Stinger (2005)
• ST 200 E (2006)

QUADZILLA (Front Right)

• Pro Shark 100 (2003)
• R170 Ram E Stinger (2004)
• R200 E Stinger E Stinger (2006)
• Ram R250 (2004-2005)
• Ram R250 E Stinger (2003-2004)
• ST 200 E (2007)
• X100 E XLC (2006-2007)

YAMAHA (Front Left)

• DT 50 MX (1992, 1995)
• YFM 50 Raptor (2004-2006, 2008)
• AG 100 E Farm Bike (1993)
• AG 100 J 3HAA (1982)
• RT 100 (1998, 2000)
• YZ 100 J|K (1982-1983)
• TT-R 125 (2000, 2002, 2006)
• YFA1 Breeze 125 (1990-1991, 1993, 1997, 1999-2001, 2003)
• YFM 125 Grizzly (2004-2005, 2008, 2010-2011)
• YFM 200 (1989-1990)
• YFM 200 N (1985)
• YFS 200 Blaster (1992-1993, 1996-1999, 2001)
• YTM 200 EL|DX (1989)
• AG 200 3GX6 (1993)
• YFB 250 Timberwolf (1994)

YAMAHA (Front Right)

• YFM 50 Raptor (2007, 2009)
• YFM 80 Badger (1992-1997, 1999, 2001)
• YFM 80 Grizzly (2005-2007)
• YFM 80 Raptor (2002, 2005-2006)
• YFA1 Breeze 125 (1989, 1992, 1994-1996, 1998, 2002)
• YFM 125 Grizzly (2006-2007, 2009, 2012-2014)
• YFS 200 Blaster (1991, 1994-1995, 2000, 2002)
• YFM 225 S|T|U (1986-1989)
• YFB 250 Timberwolf (1992-1993)

YAMAHA (Rear Left)

• DT 50 MX (1993-1994)
• PW 80 (1993-2013)
• RT 100 (1993-1997, 1999, 2001-2003)
• TT-R 90 (2000-2007)
• TT-R 125 (2001, 2003-2005, 2007-2009)
• TT-R 125 LW (2000-2025)
• TW 125 5EK (1999-2002)
• TW 200 (1991-2001)
• ST 225 5BT Bronco (1997)
• TY 80 (1983)
• XT 125 (1982)
• XT 225 Serrow (1986-1993)

YAMAHA (Rear Right)

• TT-R 110 E (2008-2026)
