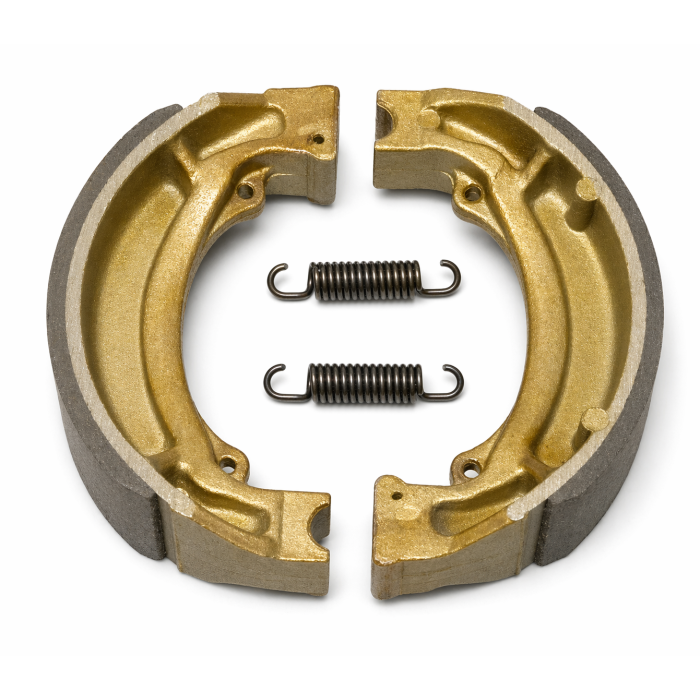

BRAKE SHOES EBC S604

This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The plain motorcycle replacement design and high-pressure die-cast aluminium shoe platform construction with bonded brake linings balance bite, modulation and durability under heat. Supplied as a complete brake shoe set with OE-style brake shoe springs, it is suitable for drum brake systems in front or rear applications where specified.

Features

• Radius ground to match the drum for stable contact and predictable engagement
• Edge trimmed with lead-in and lead-out chamfers to promote smooth initial bite
• Supplied with OE-style brake shoe springs for correct return and fit

Specifications

• Product type: Brake shoe set
• Product range/series: Plain motorcycle replacement brake shoes
• Position: Front or rear (application dependent)
• Compound / material: Bonded brake lining
• Construction / design: High-pressure die-cast aluminium shoe platforms with bonded linings
• Direction of rotation: Not directional

Dimensions

• Pad/shoe dimensions (L × H × T): 110 mm (drum diameter) × 25 mm (covering width)
• Weight: 0.2 kg

Cross Reference Numbers

• EBC: S604

Vehicle Fitment

KAWASAKI (Front Left)

• KLX 125 (2004-2005)

KAWASAKI (Rear Right)

• KFX 50 KSF (2003-2005)
• KLX 125 (2003, 2006)
• KLX 125 L (2003-2006)

SUZUKI (Front Left)

• DR-Z 125 (2003, 2013-2014)
• DS 80 (1981-1983, 1989, 1998)
• LT-Z 90 Quadsport (2007, 2009-2010, 2012-2013, 2017-2018, 2022)
• JR 80 (2005-2006)

SUZUKI (Front Right)

• LT-Z 90 Quadsport (2008, 2011, 2014-2016, 2019-2021, 2023)

SUZUKI (Rear Left)

• DS 80 (1980, 1984-1988, 1990-1997, 1999-2000)
• GS 50 K5 NA41A (2005)
• JR 80 (2001-2004, 2007)
• LT-A 50 Quadmaster (2002-2005)
• LT-Z 50 Quadsport (2006-2023)
• OR 50 ET (1980)
• RB 50 H GSXR 50 (1987)
• RM 50 X|Z (1981-1982)
• RM 80 (1980-1981, 1983-1985)
• TS 50 ER (1980-1983)
• TS 100 ERZ|ERH (1982-1987)
• TS 125 ERZ (1982)
• ZR 50 (1983-1987)
• ZR 50 SLKX (1981)

SUZUKI (Rear Right)

• DR-Z 125 (2004-2012, 2015)
• DR-Z 125 L (2003-2023)
