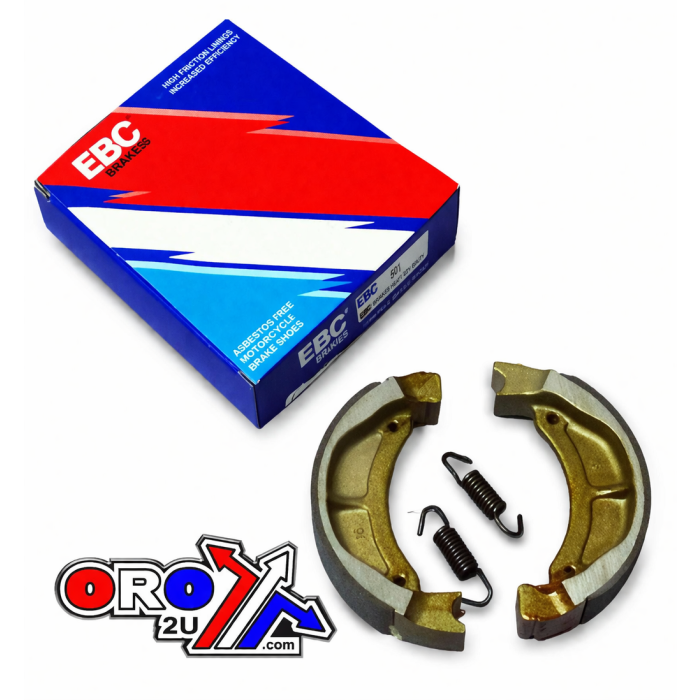

BRAKE SHOES EBC S502 Y502 VB226

This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The Plain Motorcycle Replacement Brake Shoes design and bonded brake lining construction balance bite, modulation and durability under heat. Supplied as a complete shoe set with OE-style brake shoe springs, it is suitable for 95 mm × 20 mm drum-brake systems in drum-brake applications and is manufactured as an OE-quality replacement where applicable.

Features

• Radius-ground linings for accurate drum contact
• Edge-trimmed linings for consistent fit in the drum
• Lead-in and lead-out chamfers for progressive engagement
• Supplied with OE-style brake shoe springs

Specifications

• Product type: Brake shoe set
• Product range/series: Plain Motorcycle Replacement Brake Shoes
• Compound / material: Bonded brake lining
• Construction / design: High-pressure die-cast aluminium shoe platforms with plain (ungrooved) bonded linings

Dimensions

• Pad/shoe dimensions (L × H × T): 95 mm × 20 mm (drum diameter × shoe width)
• Weight: 0.15 kg

Cross Reference Numbers

• Y502
• EBCY502
• S502
• VB226
• 1102260
• 2/1/00402-01446
• 39K-25130-00
• 00-5352W-CE3
• 00-03152-2X5
• 00-5352W-XB4
• 00-5352W-BF4

Vehicle Fitment

SUZUKI (Rear Left)

• RM 80 (1982-1985)
• RM 80 RC12A (1986-1989)

YAMAHA (Front Left)

• PW 80 (1983-1991, 1993-2013)
• TT-R 90 (2000-2007)
• TT-R 110 E (2008-2026)
• TY 80 (1977, 1983)
• YZ 80 (1977-1980)
• YZ 50 (1982)

YAMAHA (Rear Left)

• YZ 50 (1980-1981, 1983)
• YZ 80 (1981-1984, 1986-1989)
