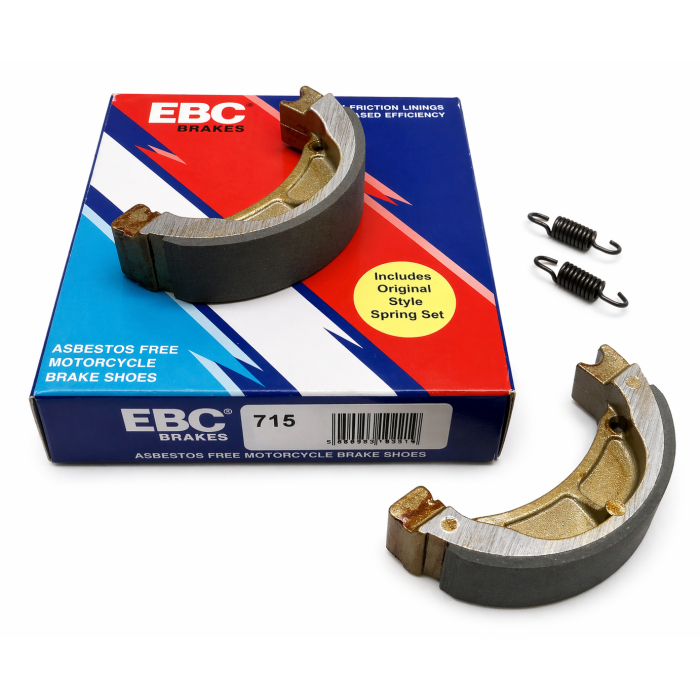

BRAKE SHOES EBC K715

This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The EBC plain replacement design and bonded lining with high-pressure die cast aluminium platform construction balance bite, modulation and durability under heat. Supplied as a complete set of brake shoes with springs, it is suitable for rear drum-brake applications and is not supplied with any specific approval or compliance marking.

Features

• Radius ground to match the brake drum profile
• Edge-trimmed linings with lead-in and lead-out chamfers
• Supplied complete with OE-style brake shoe springs
• Intended for standard drum-brake replacement use

Specifications

• Position: Rear
• Compound / material: Bonded brake lining on die cast aluminium platform
• Construction / design: Radius ground, edge trimmed, chamfered lining ends, supplied with springs

Dimensions

• Pad/shoe dimensions (L × H × T): 90 mm (diameter) × 20 mm (width)
• Weight: 0.15 kg

Cross Reference Numbers

• EBC Part number: K715

Vehicle Fitment

KAWASAKI (Front Left)

• KX 60 (1985-1986, 1988-1991, 1993, 1995, 1998, 2002-2003)
• KLX 110 L (2010-2021)
• KLX 110 R (2002-2026)

KAWASAKI (Rear Right)

• KX 60 (1983-1984, 1987, 1992, 1994, 1996-1997, 1999-2001)
• KX 80 (1983)
• KX 80 Rear Drum (1984-1987)

SUZUKI (Front Left)

• DR-Z 110 (2003-2005)

SUZUKI (Rear Left)

• RM 60 (2003)
