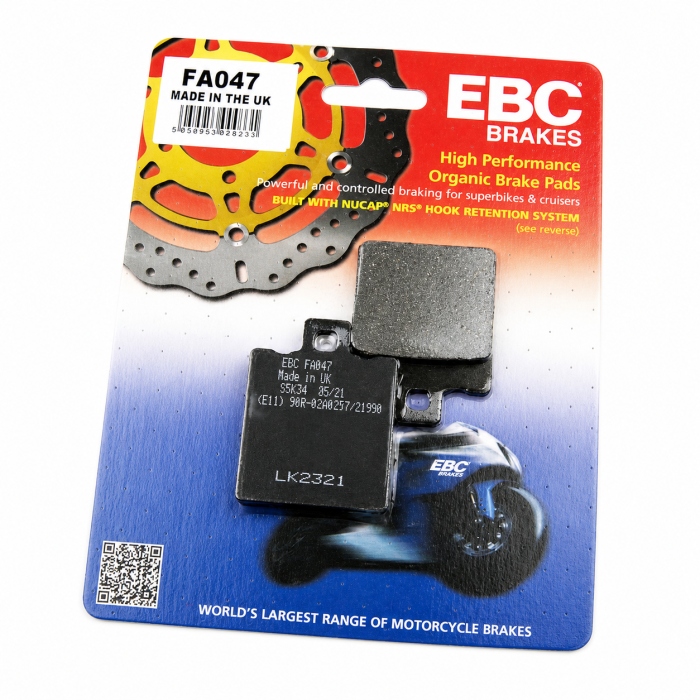

BRAKE PADS STD EBC FA047

This motorcycle disc brake pad set from EBC Brakes provides consistent braking performance and control for road use. The FA Series design and E327 grade aramid organic construction balance bite, modulation and durability under heat. Supplied as a pad set for one caliper, it is suitable for motorcycle disc brake applications and is TÜV tested and ECE R 90 approved where applicable.

Features

• Eco-friendly organic compound for smooth, progressive response
• Low dust formulation with low disc abrasion in normal road use
• Nucap NRS hook retention backing plates to reduce the risk of pad debonding after corrosion or extended use
• Not intended for race or track use

Specifications

• Product type: Motorcycle disc brake pads
• Product range/series: FA Series (Organic)
• Compound / material: E327 grade aramid organic
• Construction / design: Organic pad with Nucap NRS hook retention backing plate system

Dimensions

• Pad/shoe dimensions (L × H × T): 40 × 50.5 × 7 mm

Cross reference Numbers

• EBC: FA047

Vehicle Fitment

ACCOSSATO (Front Left)

• CE 50|80|KR 80 (1987)
• Enduro Codice 50 (1989)

AGRALE (Front Left)

• Elefantre 30 (1992)

APRILIA (Front Left)

• 250 (1986)
• RS 50 (1993-1998)

APRILIA (Rear Left)

• Red Rose 125 (1987)
• RS 125 (1992-2005)
• Tuono 125 (2003-2004)

APRILIA (Rear Right)

• AF1 125 (1987-1990)
• RS 250 (1995-2002)

BENELLI (Front Left)

• 62.5 C|TS (1976)
• 124|125|126 2C|2CSE (1976)
• 304 (1983)
• 354 Sport 2 (1983)
• 500 4 (1976)

BENELLI (Front Right)

• 125 T (1983)
• 354 (1982)
• 654 Sport (1983)

BENELLI (Rear Left)

• 666 Scooter Born in Hell (1998-1999)

BENELLI (Rear Right)

• UNO C 150 (2013)
• UNO C 250 Single Cyl (2013)

BIMOTA (Rear Left)

• All models (1989)
• Later models (1998)

BIMOTA (Rear Right)

• DB5R|S 1078cc (2008-2009)
• DB6 1078cc (2008-2009)
• DB6 1100cc (2012-2013)
• DB6|R 1078cc (2008-2009)
• DB7 1099cc (2009-2014)
• DB8 SP 1198cc (2010-2013)
• DB10 Motard 1078cc (2012-2014)
• SB8K Santamonica (2004)
• SB8K Gobert (2006)
• Tesi 2D Ducati (2004-2006)
• Tesi 3D 1078cc (2009-2013)

BULTACO (Rear Right)

• Pursang MK6 125|175|200|250|350 (1973)

CAGIVA (Front Left)

• SST 250|350 (1980-1982)
• SX 250|350 (1982)
• W4 50 (1991-1995)
• WMX 125 (1986)
• WMX 250 (1985)
• WMX 500 (1984-1986)

CAGIVA (Rear Left)

• Excalibur 501 RLX (1992)

CAGIVA (Rear Right)

• Blues 125 (1992-1995)
• Cucciolo 125 (2000)
• Elefant 650 (1985, 1988-1989)
• Freccia 125 SY (1989)
• Mito 125 All models (1991-2007)
• Mito 125 SP525 (2008-2010)
• Mito 500 (2007-2008)
• N1 125 (1997)
• Nuvola 125 (2000)
• Passing 125 (1993-1997)
• Planet 125 1ST Series (1999-2003)
• Planet 125 2ND Series (1999-2003)
• Planet 125 3 Spoke Wheel (1999-2003)
• Raptor 125 (2003-2010)
• River 600 (1995-1999)
• Roadster 125 521 1A Model (1992-1994)
• Roadster 125 1AA Model (1995-1999)
• Super City 125 (1992-2000)
• WMX 250 (1987-1988)

DUCATI (Front Left)

• 500 Sport Desmo (1977)

DUCATI (Front Right)

• 500 GTL (1975)
• 500 GTV Pantah (1977)

DUCATI (Rear Left)

• 748 Biposta (1995-1998)
• 748 R (2000-2002)
• 748 S (2000-2002)
• 748 SP (1995-1998)
• 748 SPS (1998-1999)
• 748 Testa Bassa (2001)
• 750 Paso (1987-1990)
• 750 Supersport E (1991-1998)
• 750 Supersport IE (1991-1998)
• 851 Superbike Biposto (1989-1992)
• 888 SP4|SP5 (1992-1993)
• 888 Superbike Strada (1994-1995)
• 916 Biposto (1994-1996)
• 916 SP (1994-1996)
• 916 Senna (1994-1998)
• 916 SPS 996cc (1997-1998)
• 996 (1999-2001)
• 996 R (2001)
• 996 S (2001)
• 996 SPS (1999)
• 998 (2002)
• 998 Biposta (2002-2003)
• 998 Matrix (2004)
• 998 S (2002-2004)
• 998 S Bayliss|Bostrom (2002)
• Monster 750 (1999, 2000-2001)
• Monster 750 E (1996-1997)
• Monster 750 IE (1996-1998, 2002)
• Monster 800 (2003-2004)
• Monster 1000 S2R 992cc (2006-2008)
• Monster S2R 803cc (2005-2007)
• Monster S2R Dark 803cc (2005-2006)
• Monster S4R 996cc (2003-2006)
• Monster S4RS 998cc (2006-2008)
• S4RS 998 Testastretta (2007)
• Sport 800 (2003)

DUCATI (Rear Right)

• 500 Pantah (1979)
• 748 Biposta (1999-2002)
• 748 SP (1999-2002)
• 907 IE (1990-1993)
• Monster 400 (1995-1997, 2000-2008)
• Monster 600 (1993-2001)
• Monster 600 City|City Dark (1999)
• Monster 600 Dark (1998-1999)
• Monster 620 IE (2002-2005)
• Monster 620 (2005-2006)
• Monster 695 (2007-2008)
• Monster 900 (1993-1999)
• Monster 900 City|City Dark (1999)
• Monster 900 Cromo|Special (1998)
• Monster 900 IE (2000-2001)
• Monster 1000 Dark (2003)
• Monster 1000 S ie 992cc (2003-2005)
• Monster 1000 ie 992cc (2004-2005)
• Monster S4 (2001-2002)
• Monster S4 916 Foggy Rep (2002)
• Multistrada 620 (2006)
• Multistrada 620 Dark (2006)
• Pantah 600 (1981)
• Sport 620 (2003)
• Supersport 400 (1993-1997)
• Supersport 600 (1991-1997)
• Supersport 900 (1989-1990)
• Supersport 900 FE (1998)
• Supersport 900 Superlight (1991-1997)

FANTIC (Front Left)

• 50 Caballero|Caballero RC R (1991)
• 80 Caballero|Caballero RC R (1991)

GARELLI (Front Left)

• Urka 50 (1991)
• 125 XR|XRD Tiger (1983)

GILERA (Front Left)

• 125 HX LC (1983)
• 125 RX (1984)
• 250 RX Arizona Rally (1986)
• HX 250 LC (1983)
• RV 125 Arizona (1988)
• RX 200|Arizona|Enduro (1985)

GILERA (Rear Left)

• RV 50 NGR (1988)
• RV 200 (1985-1987)
• NGR 250 (1985)
• RC 250 Rally (1987-1988)
• 200 Fast Bike (1987)
• 125 MX1|MXR (1989)
• 125 SP 01|SP 2 (1989)
• 125 XR1|XR2 (1989)
• 125 CX (1991)
• GFR 125 (1994)
• Nordwest 600 (1990)
• Saturno 350 Bialbero (1990)
• Saturno 500 S|Bialbero|Piuma (1990)
• XRT 350 (1990)
• XRT 600 (1988)

HONDA (Rear Left)

• CBR 900 Evolution Blade (1999)

HONDA-HM ITALY (Rear Left)

• CRE 50 Six|Baja|Derapage (1995-2002)

HRD (Front Left)

• WH 125 Road|Red Horse (1985)

HYOSUNG (Front Left)

• MS1-125|150 Exceed (2002-2004)

HYOSUNG (Rear Right)

• GV 125 S (2018-2019, 2021, 2024)

LAVERDA (Front Left)

• Alpino 500 (1976)
• LZ 125 Sport (1980-1982)
• GS 125 Lesmo (1986-1989)

LAVERDA (Front Right)

• Montjuic (1976)

LAVERDA (Rear Left)

• CR 50 Atlas (1987)
• 650 All models (1994-1995)
• 668 All models (1996-1998)
• 750 All models (1998-2001)

MAICO (Front Left)

• All models (1985)

MALAGUTI (Front Left)

• Enduro MDX 80 (1984)
• 50 Enduro MEX (1985-1986)

MALANCA (Front Left)

• 125 Mark Enduro (1984)

MOTO MORINI (Rear Left)

• Dart 350 (1987)
• Kanguro 350 (1987)
• Goguaro 350 (1990)
• Excalbur RLX 350 (1993)

MOTO-GUZZI (Front Left)

• 650 65 GT GT (1989)
• 750 Strada|T Roadster Roadster (1993)
• 750 SP SP KE (1992)
• NTX 650 (1987-1988, 1990)
• Nevada 350 (1992)
• Nevada 750 (1997-1999, 2001-2011)
• V 35II 350 (1983)
• V 35 350 (1978)
• V 35 350 Florida (1989)
• V 50 500C Custom (1982, 1984-1985)
• V 65 650 Florida (1989-1992)
• V 65 650C Custom (1985)
• V 75 KE (1992, 1997)

MOTO-GUZZI (Front Right)

• 650 65 GT GT (1988)
• 750 SP SP KE (1991)
• NTX 350 (1989)
• Nevada 350 (1994-1995, 1997)
• Nevada 350 Club (1999)
• Nevada 750 Club (1998-1999, 2001)
• Targa 750 (1993)
• V 35II 350 (1982, 1984)
• V 35 350 (1977)
• V 35 350 Florida (1986, 1988)
• V 35 350C Custom (1984)
• V 50 500 KE (1977, 1979)
• V 50 500C Custom (1983)
• V 50III 500 (1985-1986)
• V 65 650 Florida (1985, 1987)
• V 65 650C Custom (1983)
• V 75 KE (1993, 1995, 1999-2000)

MOTO-GUZZI (Rear Left)

• 1000 Daytona (1992-1995)
• 1000 Daytona RS (1997-1998)
• 750 Strada|T Roadster Roadster (1994-1995)
• 750 SP SP KE (1990)
• Centauro V10 GT (1997-1999)
• Centauro V10 Sport (1997-1999)
• NTX 350 (1987-1988, 1990)
• NTX 650 (1989)
• Nevada 350 (1993, 1996)
• Nevada 750 (1991-1996, 2000)
• Nevada 750 Club (2000)
• Sport 1100 Carbs (1994-1996)
• Sport 1100 EFi (1996-1999)
• Sport 1100 Corsa (1998-1999)
• Targa 750 (1990-1992)
• V 35II 350 (1980-1981, 1985)
• V 35III 350 (1985-1987)
• V 35 350 (1979)
• V 35 350 Florida (1987, 1990)
• V 35 350C Custom (1982-1983, 1986)
• V 50 500 KE (1978)
• V 50 500C Custom (1986)
• V 50III 500 (1987)
• V 65 650 Florida (1986, 1988)
• V 65 650C Custom (1984)
• V 75 KE (1994, 1996, 1998, 2001)
• V11 1100 Sport (1999-2000)
• V11 1100 Scura (2001-2003)
• V11 1100 (2002-2003)
• V11 1100 Ballabio (2003-2005)
• V11 1100 Le Mans (2003-2005)

MZ (Rear Left)

• Skorpion Replica (1995-2000)
• Skorpion Sport|Cup (1996-1997, 1999-2001)
• Skorpion Tour|Traveller (1995-1997, 1999-2001)
• Mastiff (1999-2002, 2004-2005)

NORTON (Rear Left)

• F1 Rotary P55 Model (1990)

PGO (Rear Left)

• X Hot 150 (2010-2012)
• G-Max 150 (2015-2018, 2020-2022)

SVM SWM (Front Left)

• 125|250 S1|S2 (1983)
• 323 Trial (1985)

TM (Rear Left)

• SMM 125 Black Dream (2004, 2006-2008, 2010-2013, 2015)
• SMM 250 (2006-2007, 2010-2015)
• SMM 300 (2006-2007, 2009-2010, 2012-2015)
• SMM 400 (2004)
• SMM 450 F Black Dream ES (2008-2010)
• SMM 450 F (2011-2013, 2015)
• SMM 530 Black Dream ES (2008-2009)
• SMM 530 F Black Dream (2004-2005, 2007)

VOXAN (Rear Left)

• Charade Racing (2006-2008)

YAMAHA (Rear Left)

• TZR 125 R 4DL1|4DL2 (1991, 1993)
• TDR 125 R Lightburner (1993-1994)
• TZR 125 RR 4DL3 (1994-1995)

YAMAHA (Rear Right)

• SZR 660 (1996-1997)
