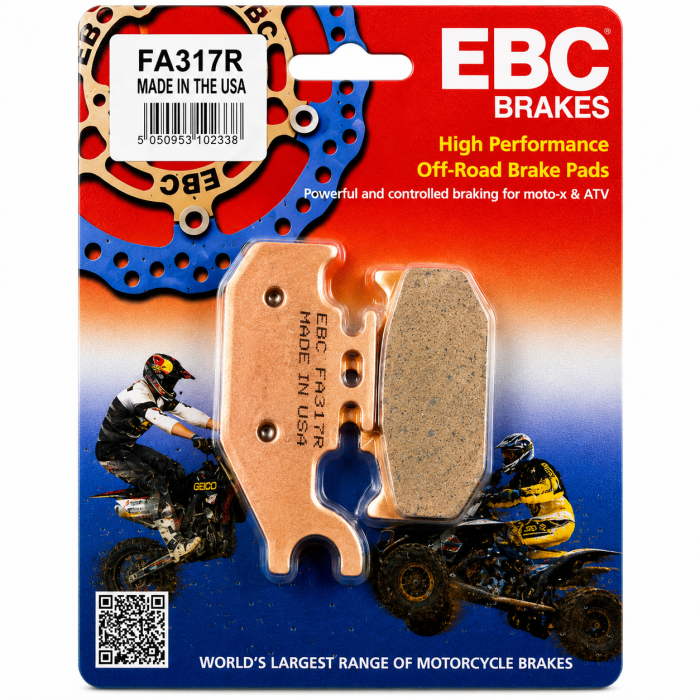

BRAKE PADS SINTERED METAL BOMBARDIER CAN-AM EBC FA317R

This motorcycle/ATV disc brake pad set from EBC Brakes provides consistent braking performance and control for off-road use. The R Series Heavy Duty Sintered design and high density sintered copper construction balance bite, modulation and durability in mud, wet, sand or dust riding conditions. Supplied as a set of brake pads, it is suitable for ATV off-road fitments in front or rear applications depending on fitment.

Features

• Highest durability ATV grade
• Intended for off-road ATV riding in mud, wet, sand or dust conditions
• Not for highway use
• Made in the EBC Brakes USA factory
• Long service life for off-road use

Specifications

• Product type: Motorcycle/ATV disc brake pad set
• Product range/series: R Series Heavy Duty Sintered
• Compound / material: High density sintered copper

Dimensions

• Pad/shoe dimensions (L × H × T): Pad A 82.08 × 40.85 × 9.46 mm; Pad B 62.03 × 40.80 × 9.46 mm

Cross Reference Numbers

• FA317R

Vehicle Fitment

BOMBARDIER BRP (Front Right)

• DS 650 Baja/X (2001-2006)
• DS 650 DS 650 TE (2000-2005)
• Outlander 330 HO (2004-2005)
• Outlander 400 Max HO (2003-2006)
• Outlander 400 Outlander 400 TE (2003-2004)
• Outlander 650 HO EFI 4 x 4/HO EFI XT 4 x 4 (2006)
• Outlander 800 All models (2006)
• Outlander Max 650 HO EFI 4 x 4/HO EFI XT 4 x 4 (2006)
• Quest 650 2 x 4 (2002)
• Quest 650 Max (2005)
• Quest 650 XT 4X4 (2002)
• Quest Max STD/XT (2004)
• Traxter 4 x 4 (2001)
• Traxter Auto Std/XL (2004)
• Traxter Autoshift TE (2001)
• Traxter CVT 500/650/650XT (2005)
• Traxter Footshift TE (2001)
• Traxter XL (2004-2005)
• Traxter XL 4 x 4 (2001)
• Traxter XT (n/a)

BOMBARDIER BRP (Rear Left)

• Quest 500 2 x 4 (2002)
• Quest 500 4 x 4 (2002-2004)
• Quest 650 4 x 4 (2002-2004)
• Quest 650 Max (2003-2004)
• Traxter 5 Speed (2005)
• Traxter Autoshift TE (2002-2005)
• Traxter Max (2003, 2005)
• Traxter Max CVT 650 (2005)
• Traxter Max Std/XT (2005)
• Traxter XL 4 x 4 (2002-2003)
• Traxter XT 4 x 4 (2001)
• Traxter XT (2005)
• Traxter XL TE (2004)

CAN AM (Front Right)

• Renegade 500 EFI 4x4 (2009-2012)

CAN AM (Rear Left)

• Ryker 600 Ace (2018-2024)
• Ryker 600 Rally (2024)
• Ryker 900 Ace (2018-2024)
• Ryker 900 Rally (2024)
• Ryker 900 Sport (2024)

CAN AM (Rear Right)

• Commander Max 1000 DPS/XT (2014-2015)
• Maverick 1000 Std (2013)
• Maverick 1000 XRS (2013)
• Maverick 1000 STD/XRS/XRS - DPS (2014-2016)
• Maverick 1000 STD_XRS_XRS - DPS (2015)
• Maverick Max 1000 Std/XRS (2014-2015)

CAN AM ATV (Front Right)

• DS 650 X 3B7A/B (2007)
• Outlander 400 4 x 4 STD 2D7A/B/C/D/E/F/G/H (2008-2014)
• Outlander 400 EFI STD (2015)
• Outlander 400 XT 4 x 4 2E7A/B/C/D/E/F (2007-2014)
• Outlander 500 STD 4 x 4 2T7A/B/C/D (2007-2012)
• Outlander 500 XT 4 x 4 2U7A/B/C/D (2007-2012)
• Outlander 650 4 x 4 STD 2N7A/B/C/D/E/F/G/H (2007-2012)
• Outlander 650 XT 4 x 4 2P7A/B/C/D/E/F (2007-2012)
• Outlander 800 STD 4 x 4 2H7A/B/C/D/E/F/G/H (2007-2008)
• Outlander 800 R EFI (2009)
• Outlander 800 R XT (2009-2010)
• Outlander 800 R Xmr (2011-2012)
• Outlander 800 R Xxc (2011)
• Outlander 800 XT 4 x 4 2J7A/B/C/D/E/F (2007-2008)
• Outlander Max 400 STD 4 x 4 2F7B/C/D/E/F/G/H/J (2007-2015)
• Outlander Max 400 XT 4 x 4 2G7A/B/C/D/E (2007-2013)
• Outlander Max 500 STD 4 x 4 2W7A/B/C (2007-2012)
• Outlander Max 500 XT 4 x 4 2X7A/B/C (2007-2012)
• Outlander Max 650 STD 4 x 4 2R7A/B/C/D/E/F/G/H/J/K (2007-2012)
• Outlander Max 650 X-TP (2012)
• Outlander Max 650 XT 4 x 4 2S7A/B/C/D/E/F (2007-2012)
• Outlander Max 800 Ltd 4 x 4 2M7A/B/C (2007-2012)
• Outlander Max 800 R EFI (2009-2012)
• Outlander Max 800 R X-TP (2012)
• Outlander Max 800 R XT (2009-2012)
• Outlander Max 800 STD 4 x 4 2K7A/B/C/D/E/F/G/H/J (2007-2012)
• Outlander Max 800 XT 4 x 4 2L7A/B/C/D/E/F (2007-2008)
• Renegade 500 4 x 4/EFI (2007-2015)
• Renegade 800 4 x 4/EFI (2007-2008)
• Renegade 800 R EFI (2009-2011)
• Renegade 800 R X (2009-2010)
• Renegade 800 R Xxc (2011)
• Renegade 800 X 4 x 4/EFI (2008)

CAN AM SIDE X SIDE (Rear Right)

• Commander 1000 Max XT/DPS (2014-2017)
• Maverick 1000 R STD (2014-2015)
• Maverick 1000 R STD Xrs (2014-2015)
• Maverick 1000 R Xmr (2014-2019)
• Maverick 1000 R Xrs DPS (2014-2015)
• Maverick 1000 R Xxc (2014-2015)
• Maverick Max 1000 (2016-2017)
• Maverick Max 1000 STD XDS and Xrs DPS (2014-2016)

CANNONDALE (Front Right)

• FX 400 (2001)
• Blaze 440 (2002-2003)
• Cannibal 440 (2002-2003)
• Moto 440 (2002-2003)
• Speed/Glamis 440 (2002-2003)

JOHN DEERE ATV AND SIDE X SIDE MODELS (Front Right)

• Buck 500/650 EX/EXT (2005)
• Trail Buck 500/650 EX/EXT (2004)

JOHN DEERE ATV AND SIDE X SIDE MODELS (Rear Left)

• Buck 500/650 EX/EXT (2004, 2006-2008)
• Trail Buck 500/650 EX/EXT (2005)

POLARIS (Rear Left)

• RZR 200 (2021-2025)

SUZUKI (Rear Left)

• LT-A 500 FK2 Vinson (2002)
