BRAKE CALIPER PISTON KIT 88-26 HONDA SUZUKI YAMAHA CB CBR DL GSX SV FZ MT YZF XSR 38mm X 31mm 5SL-25802-00

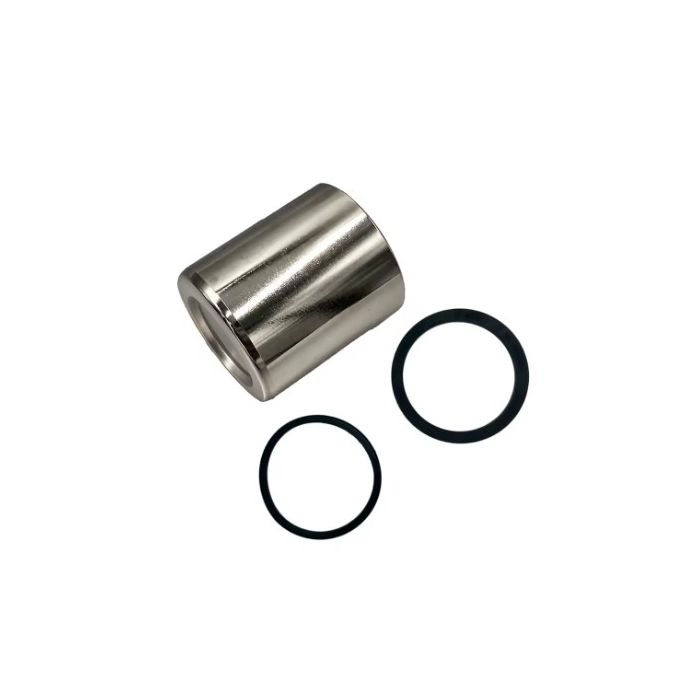

This 38 mm rear brake caliper piston and seal kit is used to rebuild compatible Honda, Suzuki and Yamaha rear brake calipers while retaining the original caliper body and factory mounting arrangement. Listed applications include Honda CBF500 and NSS250, Suzuki GSF, SFV and DL650A, and Yamaha FZ6-S, MT-07 and YZF-R6 models.

Features

• Direct replacement for the original brake caliper piston and seals
• Manufactured to meet or exceed OEM-equivalent specifications
• Matches the appearance of the original equipment
• Designed for use with the original caliper and stock mounting locations
• Engineered for reliable braking performance
• Suitable for applications subject to increased braking loads
• Allows the existing caliper to be serviced without replacing the complete assembly
• Check the product image and OEM part number before ordering
• Straightforward to fit; professional installation is advised when uncertain

Specifications

• Piston size: 38 mm × 31 mm

• Material: steel

Cross-Reference OEM Part Numbers

• Honda: 43107-KT7-761; 43107-MEL-D21
• Suzuki: 69100-04810; 69100-04810-00
• Yamaha: 5SL-W0057-00; 5SL-W0057-00-00; 5SL-25802-00; 5SL-25802-00-00

Vehicle Fitments

Honda

• CBR250R and CBR250RA (2011-2013)
• CB300F and CBR300R variants (2015-2019)
• CMX300 and CMX500 Rebel variants (2017-2019)
• NSS300 variants (2014-2016)
• CB400F CB-1 variants (1989-1990)
• CB500F, CB500X and CBR500R variants (2013-2019)
• CB600F 599 (2004; 2006)
• CBR600F2 (1991-1994)
• CBR600F3, SJR and SE variants (1995-1998)
• CBR600F4 and CBR600F4i (1999-2006)
• CBR600RR and CBR600RA variants (2007-2026)
• CBR650F, CB650F, CB650R and CBR650R variants (2014-2019)
• NT650 variants (1988-1991)
• CTX700 variants (2014-2018)
• NC700J (2015-2016)
• NC700X and NC700XD (2012-2017)
• NC750X and NC750XD (2018-2019)
• CB900F 919 (2002-2007)
• CBR900RR (1993-1999)
• CB1000 (1994-1995)
• CBR1000RR, CBR1000RA and CBR1000RS variants (2006-2026)
• CRF1000 Africa Twin variants (2016-2019)
• RVT1000R RC51 (2000-2006)
• VTR1000F (1998-2005)
• CB1100 variants (2013-2014; 2017)
• VT1100 Shadow Ace, Aero, Tourer and Sabre variants (1998-2007)
• VT1300 Stateline, Sabre, Interstate and Fury variants (2010-2019)
• VTX1300 variants (2003-2009)

Suzuki

• DL650, DL650A and DL650XA (2004-2009; 2011-2012; 2014-2017; 2019-2025)
• GSX650F (2008-2009)
• SV650, SV650S, SV650A and SV650SA (2003-2008)
• GSX-S750 variants (2015-2023)
• DL800DE variants (2023-2026)
• GSX800 variants (2023-2026)
• DL1000 (2002-2009; 2012)
• GSX-S1000 variants (2017-2020; 2022-2026)
• SV1000 and SV1000S (2003-2007)
• GSF1250S and GSF1250SA (2007-2009)
• GSX1250FA (2011)

Yamaha

• FZ6 and FZ6-S (2004-2009)
• FZ6R (2009-2017)
• YZF-R6 and R6S variants (2003-2009)
• FZ-07 and MT-07 variants (2015-2026)
• XSR700 variants (2018-2026)
• YZF-R7 variants, including anniversary editions (2022-2026)
• FZ8 (2011-2013)
• FJ-09, Tracer 900, Tracer 900 GT and Tracer 9 GT variants (2015-2022)
• FZ-09, MT-09 and MT-09 SP variants (2014-2026)
• XSR900 variants (2016-2026)
• FZ1 (2006-2015)
