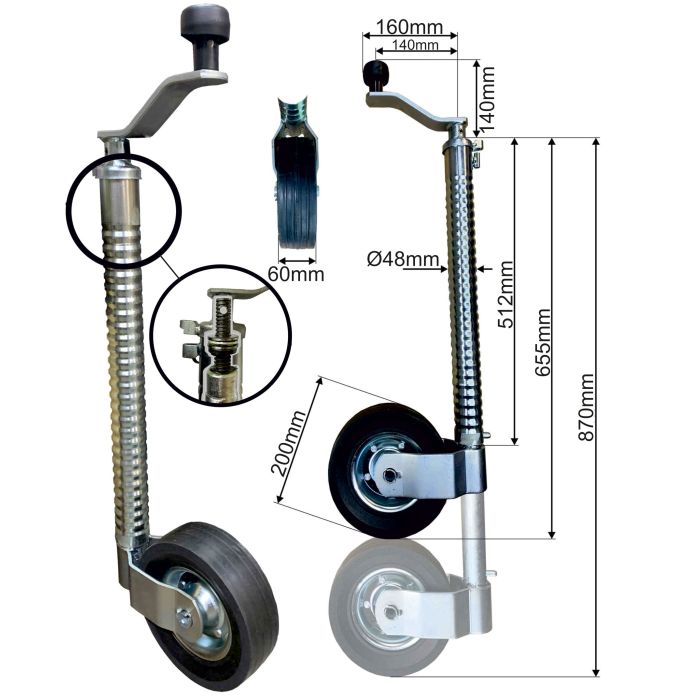

48mm RIBBED JOCKEY WHEEL TRAILER 655mm TO 870mm 500kg

This 48mm ribbed jockey wheel is engineered for trailer support and maneuverability, providing a secure and stable solution for loading and parking tasks. Featuring a ribbed shaft design and R-clip locking mechanism, it supports up to 500kg and suits a variety of trailer types, including Ifor Williams, Brian James, and M+E models.

Features

• R-clip style locking mechanism

• Ribbed shaft for locking pin engagement

• Low-profile 6-rivet wheel construction

• Adjustable height range for flexible trailer compatibility

Specifications

• Tube Diameter: 48mm

• Net Weight Load (N.W.L): 500kg

• Wheel Size: 60mm width x 200mm diameter

• Height (Closed): 750mm

• Height (Open): 1000mm

• Effective Adjustment Range: 655mm to 870mm

Vehicle Fitments

• Compatible with trailers such as Ifor Williams, Brian James, M+E, and other models designed for 48mm jockey wheel fittings
