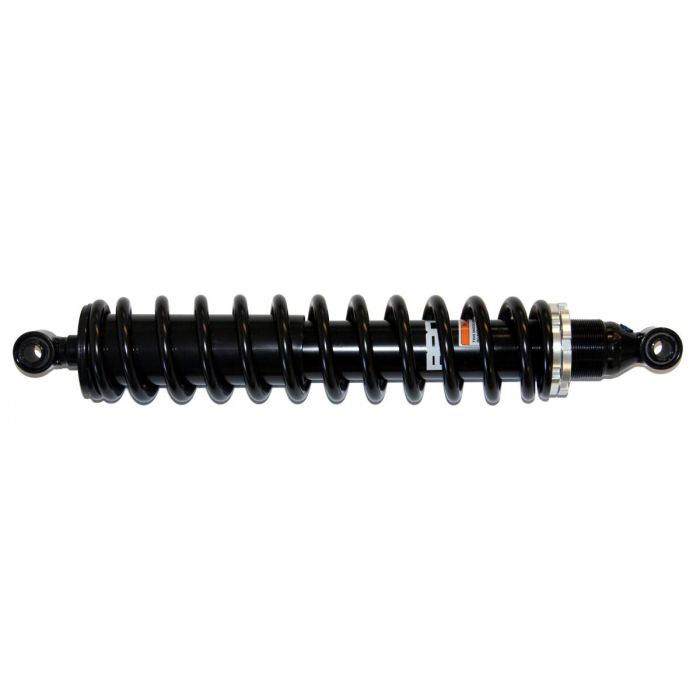

SHOCK ATV REAR KAWASAKI PRAIRIE BRONCO, AU-04413 99-02

BRONCO HEAVY DUTY GAS SHOCKS

Description:

• Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
• 10% stiffer springs provide a better ride and higher load capacity.
• Works great on the front when installing a snow plow.
• Smooth black color blends perfectly with any OEM ATV.
• Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
• Sold individually - Includes one shock, with spring, and spring retainers.

FITMENT:

• KVF300 PRAIRIE 300 4X4 1999-2002
• KVF360 PRAIRIE 360 4X4 2003-2012
• KVF400 PRAIRIE 400 4X4 1999-2002

SPECIFICATIONS:

• POSITION TOP HOLE I.D MM: 12
• TOP EYELET WIDTH MM: 32
• BOTTOM HOLE I.D MM: 12
• BOTTOM EYELET WIDTH MM: 32
• TUBE O.D MM: 42
• STROKE MM: 124
• SPRING OD MM: 70
• SPRING WIRE DIAMETER MM: 9.5
• SPRING RATE LBS/INCH: -
• SPRING RATE KG/MM: -
• CENTER TO CENTER MM: 438
• CENTER TO CENTER IN: 17 1/4

BRONCO REF: AU-04413 OEM REF: 45014-1624, 45014-1709, 45014-1838
