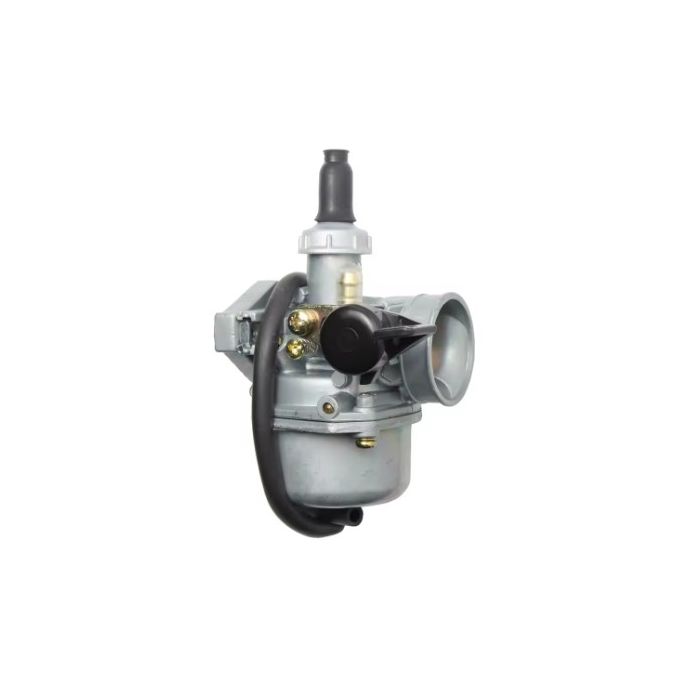

CARBURETOR ASSY HONDA XR CRF R F 70 16.5mm PB12H PB12J PB12K 16100-GCF-672

This PZ18 16.5 mm carburettor is a replacement carb assembly for selected Honda 70 cc models using PB12H, PB12J or PB12K carburettor types. It is designed to replace the original carburettor assembly, retain the stock mounting position, and support correct fuel and air delivery for repair or service applications.

Features

• Direct OEM-style replacement carburettor
• Designed for stock mounting locations
• Made to OEM specifications
• Matches the original equipment appearance
• Designed to handle increased power loads
• Made using high-tech materials for reliability and performance
• Intended as a cost-effective replacement part
• Easy to install, with professional fitting recommended if unsure
• Product image should be checked before ordering to avoid mistakes
• Supplied as a quality replacement part with a satisfaction guarantee

Specifications

• Carburettor type: PZ18
• Carburettor size: 16.5 mm
• Compatible carburettor codes: PB12H, PB12J, PB12K
• Head-side mounting bolt spacing: 42.5 mm centre-to-centre
• Outlet size: 16.5 mm
• Offset: 5 mm
• Seal size: 24 mm
• Airbox side outside diameter: 35 mm
• Material: aluminium and zinc alloy

Cross-Reference OEM Part Numbers

• 16100-GCF-672
• PB12H
• PB12J
• PB12K

Vehicle Fitments

• Honda CD70, 1997-2004
• Honda XR70R, 1997-2004
• Honda CRF70F, 1997-2004
• Honda XR70, 1997-2004
• Honda CRF70, 1997-2004
